The goal of Project 5 was to design, simulate, and build a 3-bit Digital-to-Analog Converter (DAC) with a full-scale output of 5 V. Three digital input bits feed a weighted resistor network, and the resulting analog voltage is buffered by a unity-gain op-amp stage. Each bit’s weight is set by RREF = 100 kΩ: R1 = 100 kΩ (LSB), R2 = 200 kΩ, and R3 = 400 kΩ. MOSFET switches ensure input lines draw < 1 µA. The final circuit produces an output voltage proportional to the binary input, buffered to prevent loading.

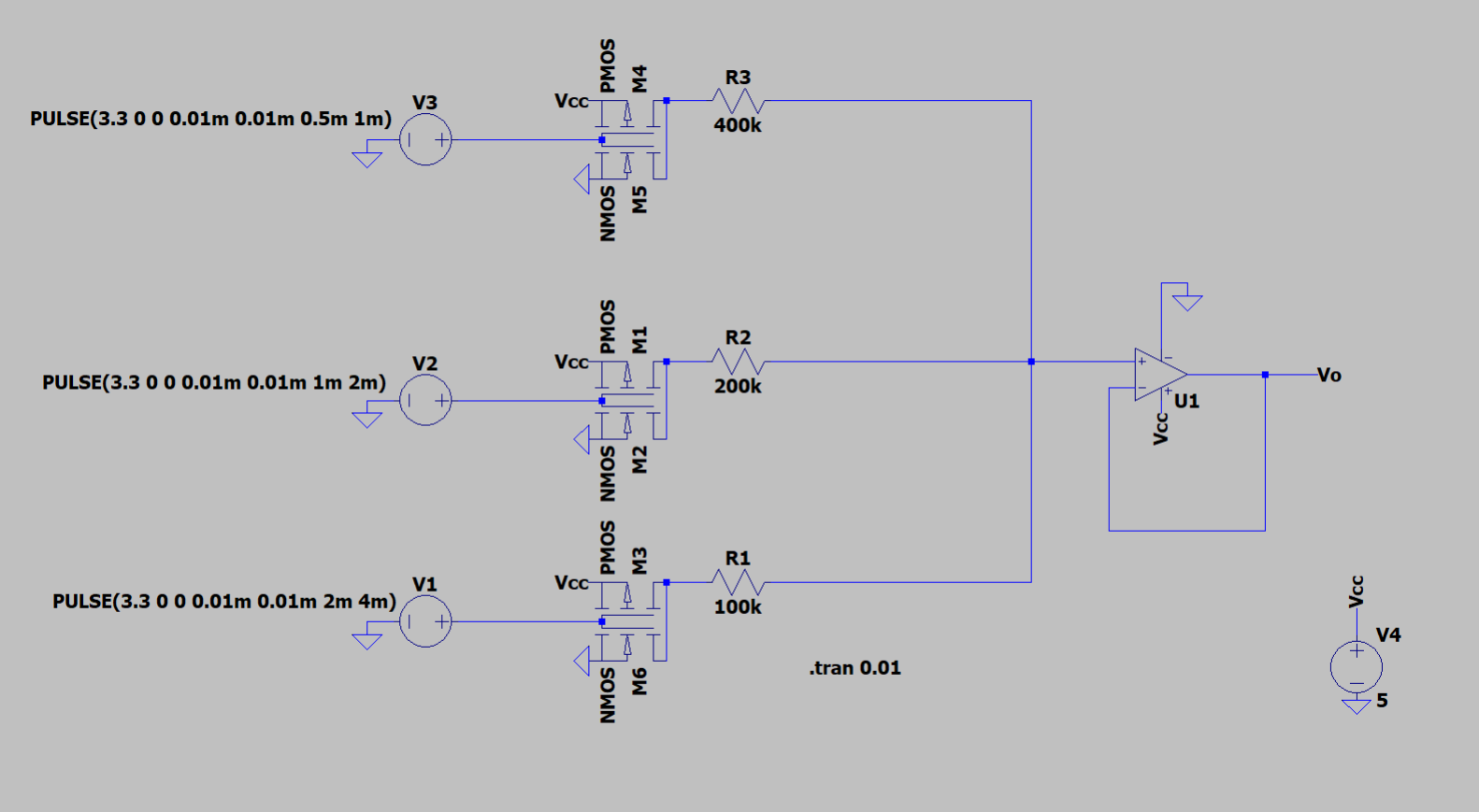

Weighted-Resistor DAC Schematic (Figure 1)

Design

The DAC core is a binary-weighted resistor network. Each digital input (V1, V2, V3) drives both a P-MOS and an N-MOS transistor to connect either +5 V or 0 V into the resistor ladder without drawing input current. Because of the complementary MOS topology, logic is inverted: 5 V = logic 0, 0 V = logic 1. The weighted resistors are:

  • R1 = 100 kΩ (LSB)
  • R2 = 200 kΩ (constructed from 150 kΩ + 2×24.9 kΩ in series)
  • R3 = 400 kΩ (4×100 kΩ in series)

The resistor node drives a non-inverting unity-gain buffer (op-amp) to isolate and maintain the voltage. This buffer draws negligible current, preserving the weighted sum accuracy.

Physical DAC Circuit (Figure 2)

References for design:

Measurement & Analysis

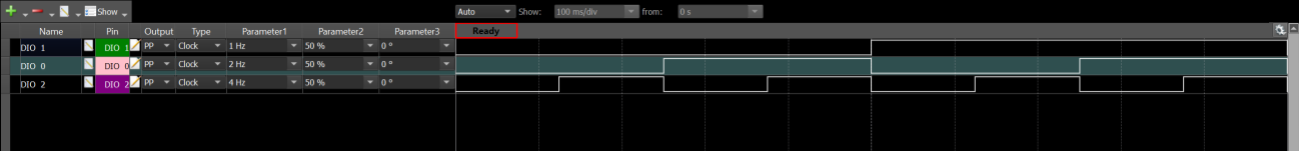

Digital Input Configuration (Figure 3)

Digital Input Setup

The AD3’s pattern generator drove the three GPIO pins (3.3 V levels) as digital inputs, cycling through all 3-bit codes. Although the DAC was designed for 5 V logic, 3.3 V inputs still switch the MOSFET gates reliably. Op-amp supplies were +5 V/−5 V, and the oscilloscope measured the buffered output.

Oscilloscope Output

The scope captured the DAC output as the input code increments from 000 to 111. Each step ideally changes by 5 V/7 ≈ 0.714 V. The measured waveform shows distinct voltage levels corresponding to each code.

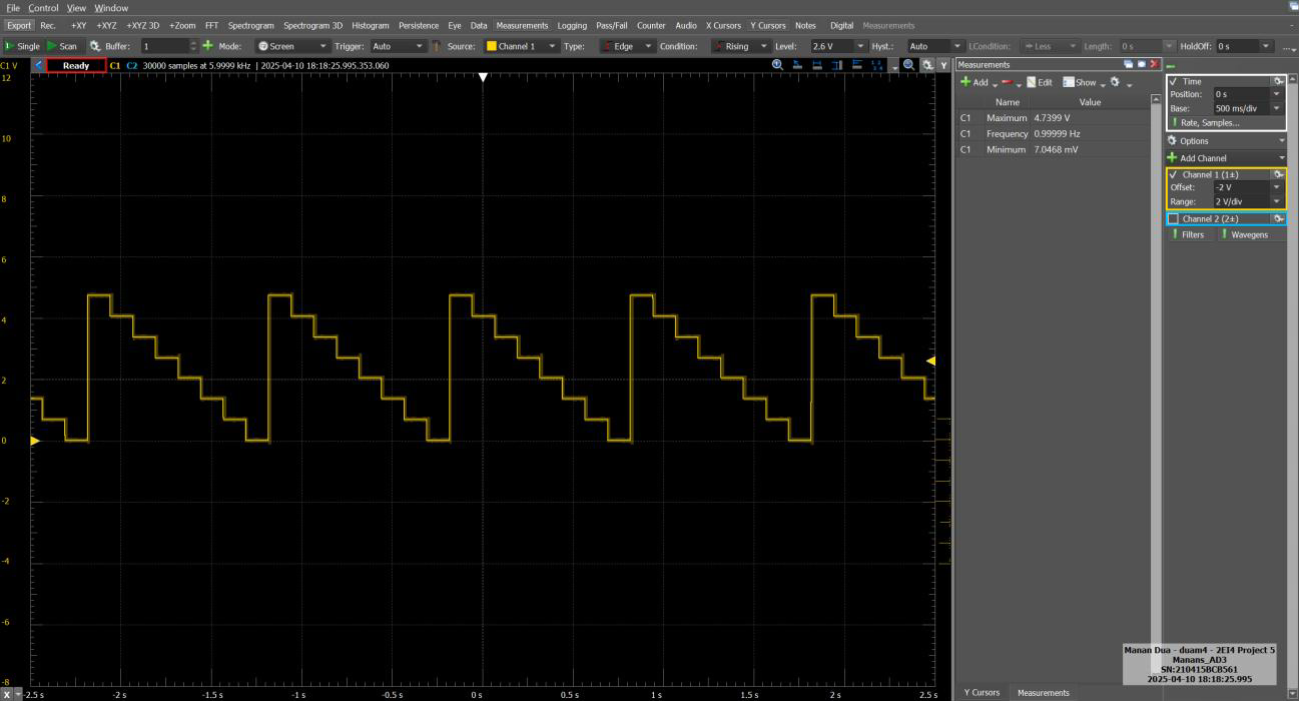

Oscilloscope Output (Figure 4)

Gain Error

Gain error is the deviation between expected and measured full-scale voltage. The ideal full-scale is 5 V, but the measured peak is ~4.74 V. Unity-gain buffer gain error:

Error = (VExpected − VActual) / VExpected
      = (5 V − 4.74 V) / 5 V
      = 5.2 %

Maximum Differential Non-Linearity (MDNL)

MDNL quantifies the largest deviation between ideal and actual step size. For 3 bits, ideal step = 5 V/7 ≈ 0.714 V. Measured step ≈ 0.697 V. Thus:

Videal = 5 V / (2³ − 1) = 0.714 V
Vactual = 0.697 V

MDNL = |Videal − Vactual| / Videal
     = |0.714 V − 0.697 V| / 0.714 V
     ≈ 2.42 %

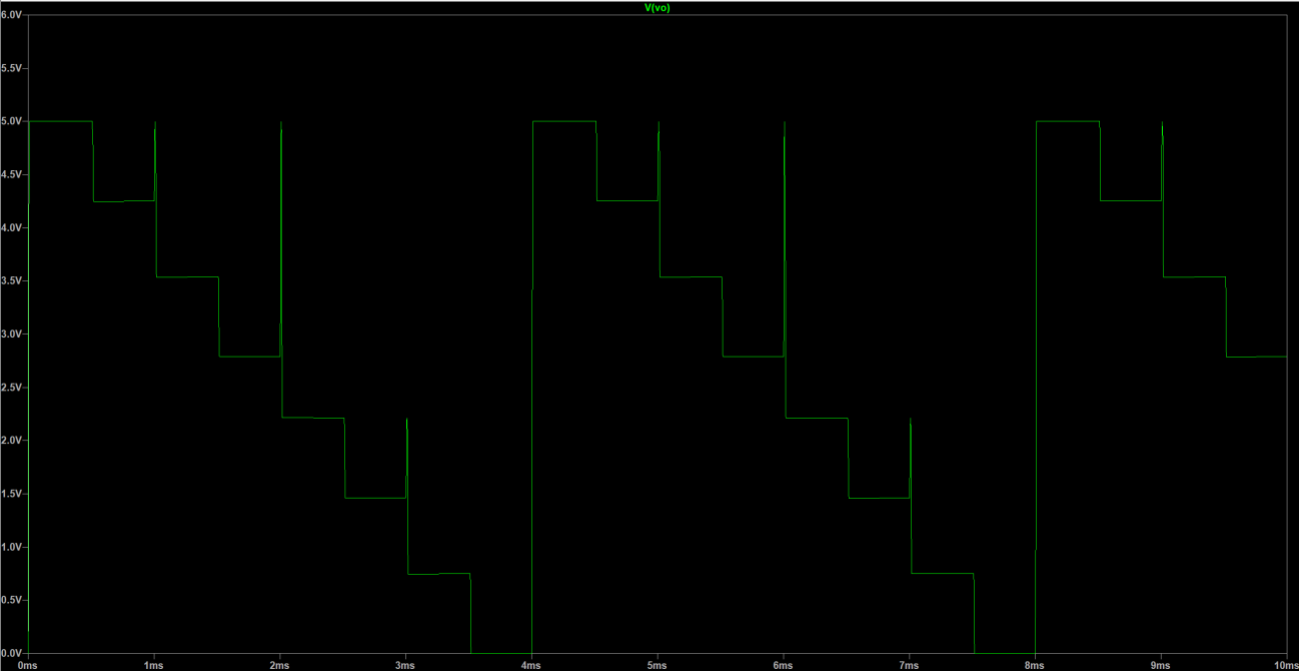

Simulated Output with 5 V Input (Figure 5)

Offset Error

Offset error is the output when input code = 000 (should be 0 V). Measured ~7.05 mV. Causes include MOSFET threshold mismatches and op-amp offset. Thus:

Offset Error = 7.05 mV

Discussion

Origins of Errors

Deviations arise from:

  • 3.3 V input limitation (AD3 GPIO) instead of 5 V specification—MOSFET gates partially on.
  • Resistor tolerances (±1%–±5%) in RREF network.
  • Op-amp offset and finite open-loop gain causing slight gain error.
  • Wiring and breadboard parasitics introducing noise.

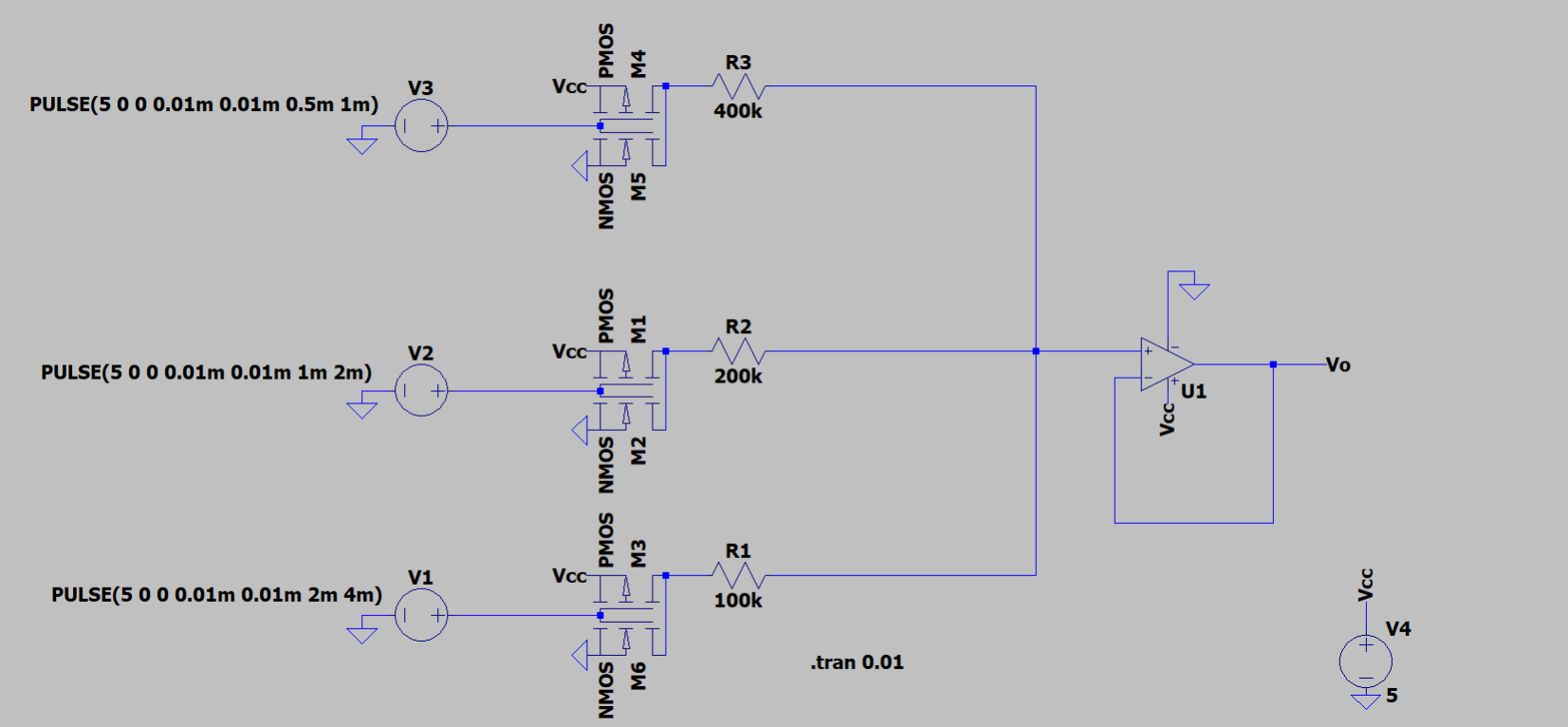

Simulation Schematic with 5 V Inputs (Figure 6)

Alternate Designs

Two common 3-bit DAC topologies:

  • Binary-Weighted Resistor Network: Simple resistor values proportional to bit weight. Easy to calculate for 3 bits but requires precise high-value resistors (100 kΩ, 200 kΩ, 400 kΩ).
  • R-2R Ladder Network: Uses only two resistor values (R, 2R), improving matching and reducing tolerance sensitivity. Preferred for higher-bit DACs; slightly more complex routing on breadboard.

For this 3-bit design, binary-weighted was chosen for simplicity and minimal component count, despite R-2R’s potential accuracy advantages.
